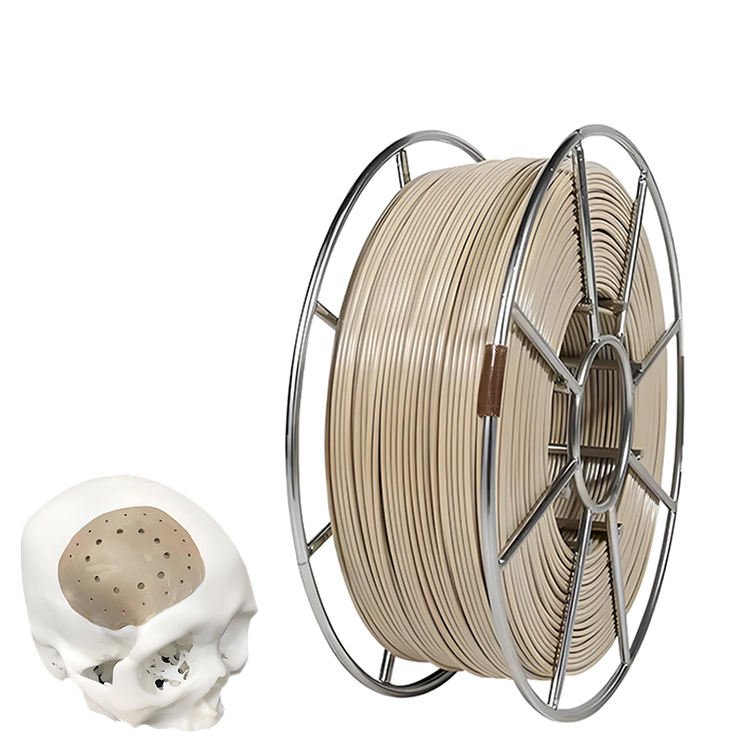

Medical Grade PEEK 3D Printing Filament
Medical implant-grade PEEK 3D printing filament (YYT0660-2008 & FDA compliant). Features a mechanical modulus matching natural cortical bone, 260°C heat resistance, and steam sterilizability. Precision extruded (±0.03mm tolerance) for surgical guides, implants, and medical components. Share your required diameter and quantity for a fast quote.
Description
Formulated for superior printing stability and low warping, our PEEK filament undergoes continuous extrusion processing to maintain strict diameter tolerances (±0.03 mm) across kilometer-length spools without breakage. Unlike metallic implants, medical PEEK exhibits excellent X-ray radiolucency (transparency), enabling artifact-free post-operative CT and MRI imaging. Additionally, it offers 260°C heat resistance, full steam sterilizability, and outstanding biocompatibility.
Where this material can fit
Medical-grade PEEK filament is specifically engineered for precision healthcare, orthopedic implants, and bio-engineering applications:
Orthopedics & Implants : Patient-specific bone implants, spinal cages, and cranial plates (cortical bone-matching modulus, YYT0660-2008 & FDA compliant).
Surgical Tools : Autoclavable surgical guides, instrument handles, and dental prototypes.
Analytical & Medical Devices : HPLC liquid chromatography lines, blood-contact manifolds, and microfluidic capillary tubing.
Suitability depends on sterilization method (e.g., steam/autoclave), mechanical load, and chemical exposure. Our technical team can help evaluate your medical application prior to 3D printing.
Available form and supply discussion
We supply medical-grade PEEK in 3D printing filaments and precision capillary tubing:
3D Printing Filaments (1.75mm / 3.0mm) : Continuous extrusion over kilometer lengths without breakage, strict ±0.03 mm tolerance, packaged on vacuum-sealed 0.25 kg, 0.5 kg, or 1.0 kg spools.
Capillary Tubing & Fine Filaments (0.25mm – 4.0mm) : Ultra-smooth micro-tubing for medical fluid handling and analytical instruments.
Material Compliance : Made from 100% pure medical implant-grade PEEK resin with third-party YYT0660-2008 test verification reports.
What to confirm before ordering
To provide an accurate quote and recommendation, please confirm:
Material Grade : Medical implant-grade (YYT0660-2008), FDA food-grade, or industrial PEEK.
Filament Specs : Required diameter (1.75mm, 3.0mm, or capillary sizes), tolerance, spool weight, and quantity.
Application Conditions : Sterilization requirements (e.g., steam/autoclave, gamma ray), continuous temperature, and mechanical load.
Order Details : Sample/testing quantity, batch size, and delivery destination.
Send your 3D models (STL/STEP), specifications, or part description. Our technical team will review your request and respond with a practical material and supply recommendation.
Material overview
Understanding PEEK (Polyether Ether Ketone)
Why engineers use it
- Strong balance of heat, chemical and mechanical performance.
- Can be molded, extruded, machined or printed in suitable grades and equipment.
- Good fatigue and wear potential for demanding moving or loaded parts.
- Available in unfilled, glass-fiber, carbon-fiber and wear-modified grades.
- Suitable for precision components where long-term reliability justifies a specialty polymer.
Limits to consider
- High processing temperature requires capable equipment and controlled drying.
- Crystallinity, cooling and annealing can affect dimensions and performance.
- Reinforcement improves some properties but may reduce ductility or change machining behavior.
- Not every chemical, wear or medical application is covered by a standard industrial grade.
- PEEK can be unnecessary over-specification where PPS, PEI or another polymer meets the duty.
Grades and product forms
Unfilled PEEK provides the broad base-property balance. Glass-fiber grades generally target stiffness and dimensional control; carbon-fiber grades may add stiffness, strength and conductivity; bearing grades use fillers such as carbon, graphite or PTFE to tune friction and wear. Film, filament, powder, pellets and stock shapes each require different processing and purchasing information.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Preparing a high-temperature printing project
Provide filament diameter, printer model, nozzle and chamber capability, drying method, build geometry, support strategy and annealing plan. A high-performance filament cannot compensate for a printer that lacks the necessary thermal control.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PPS, PEI, PSU/PPSU or a conventional engineering plastic may be more economical when temperature, chemical and mechanical requirements are moderate. PEEK is justified when several demanding requirements occur together or when service life and reliability outweigh raw-material cost.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
| Printing setup | Printer, nozzle, chamber, build plate, drying and annealing capability |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
