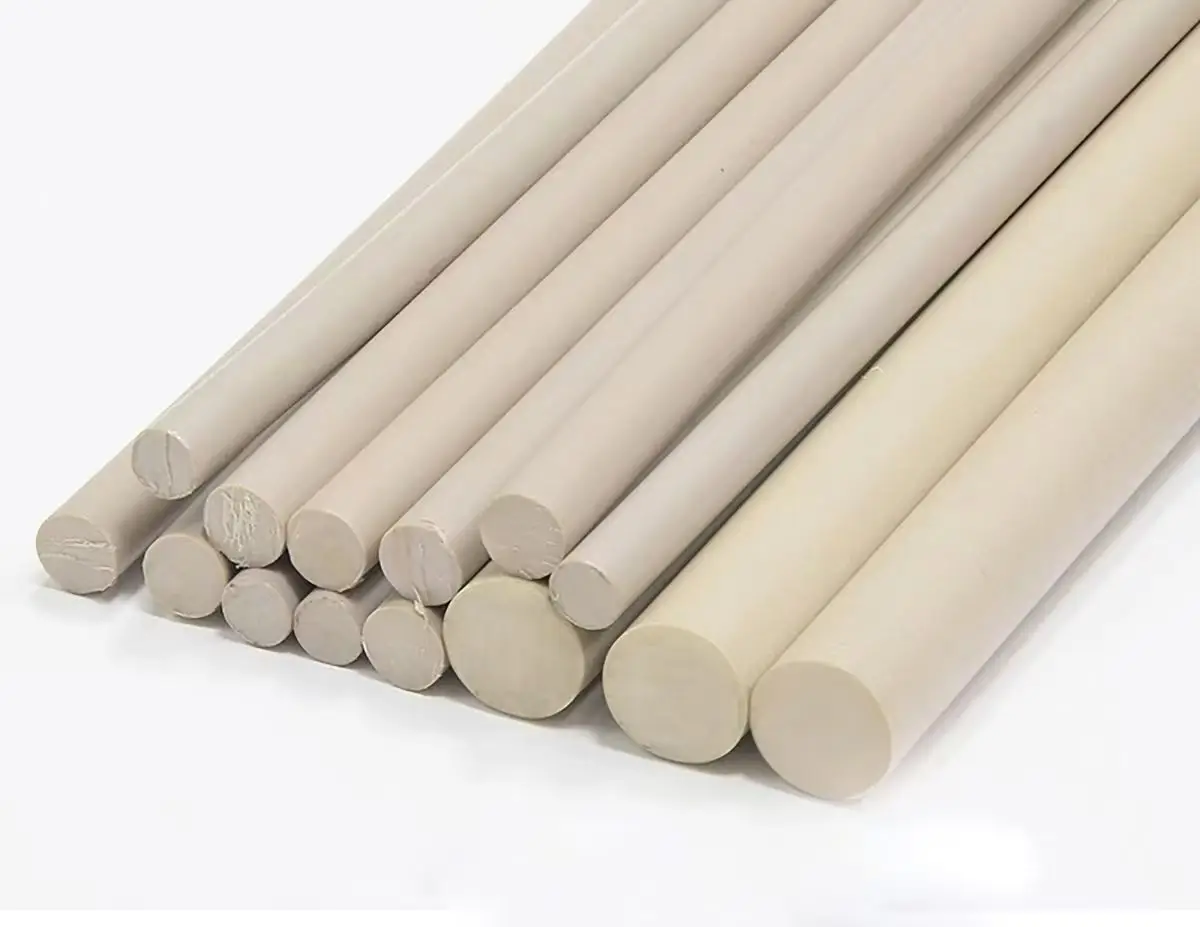

Semiconductor Grade PEEK Rods
Ultra-high purity Semiconductor Grade PEEK Rods engineered for zero-defect CNC lathe turning and swiss-machining. Features sub-ppm trace metal purity, ASTM E595 low-outgassing compliance, and double-annealed internal stress relief to prevent center cracking. Continuous temperature resistance up to 260°C. Contact us for custom diameters, material certificates, and fast RFQs.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Semiconductor Grade PEEK Rods are engineered specifically for high-precision lathe turning and swiss-machining where standard industrial plastics fail due to trace metal contamination or internal stress cracking. Manufactured from 100% virgin, ultra-high purity PEEK resin, every rod undergoes an extended thermal stress-relief process to guarantee dimensional stability during aggressive CNC milling and drilling.
Engineering Benchmarks & Machining Performance:
-
Zero Center-Cracking (Double-Annealed Stress Relief)
Standard extruded PEEK rods contain severe internal tension that causes them to warp or split down the core during deep-hole drilling or heavy lathe turning. Our proprietary double-annealing thermal profile eliminates residual internal stress, allowing crack-free machining of thin-walled rings, nozzles, and test sockets. -
Sub-ppm Trace Metal Purity (< 1 ppm)
Compounded in controlled cleanroom environments, ionic impurities (Na, K, Fe, Cu) are strictly held at sub-ppm levels. Guaranteed to prevent metallic contamination in CMP slurries, wet chemical etching, and ultra-pure water (UPW) systems. -
Certified Low Outgassing (ASTM E595)
Independently tested for vacuum environments (Total Mass Loss < 1.0%, CVCM < 0.10%), preventing volatile particle redeposition in high-vacuum CVD, PVD, and plasma etching chambers.
Machining Suitability & Component Applications:
Designed specifically for CNC turning, swiss-lathe machining, and precision drilling of:
• Wafer Processing: CMP retaining rings, wafer combs, wet-bench fluid valves, and etch-chamber insulators.
• IC Testing & Handling: Fine-pitch IC test socket bodies, pick-and-place tips, and high-speed sorter guides.
• Chemical & Fluid Delivery: High-purity liquid fittings, pump pistons, and valve seats operating at continuous temperatures up to 260°C.
Specifications & Technical Assistance:
• Standard Diameters: Available from 6mm to 200mm in stock. Custom cut-to-length and centerless-ground tight tolerances available upon request.
• Documentation: Full Material Test Reports (MTR) and Certificates of Conformance (CoC) shipped with every batch.
Have specific part drawings or purity requirements? Send us your specs or STEP/DWG files for an immediate technical evaluation and quotation.
Material overview
Understanding PEEK (Polyether Ether Ketone)
Why engineers use it
- Strong balance of heat, chemical and mechanical performance.
- Can be molded, extruded, machined or printed in suitable grades and equipment.
- Good fatigue and wear potential for demanding moving or loaded parts.
- Available in unfilled, glass-fiber, carbon-fiber and wear-modified grades.
- Suitable for precision components where long-term reliability justifies a specialty polymer.
Limits to consider
- High processing temperature requires capable equipment and controlled drying.
- Crystallinity, cooling and annealing can affect dimensions and performance.
- Reinforcement improves some properties but may reduce ductility or change machining behavior.
- Not every chemical, wear or medical application is covered by a standard industrial grade.
- PEEK can be unnecessary over-specification where PPS, PEI or another polymer meets the duty.
Grades and product forms
Unfilled PEEK provides the broad base-property balance. Glass-fiber grades generally target stiffness and dimensional control; carbon-fiber grades may add stiffness, strength and conductivity; bearing grades use fillers such as carbon, graphite or PTFE to tune friction and wear. Film, filament, powder, pellets and stock shapes each require different processing and purchasing information.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PPS, PEI, PSU/PPSU or a conventional engineering plastic may be more economical when temperature, chemical and mechanical requirements are moderate. PEEK is justified when several demanding requirements occur together or when service life and reliability outweigh raw-material cost.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
