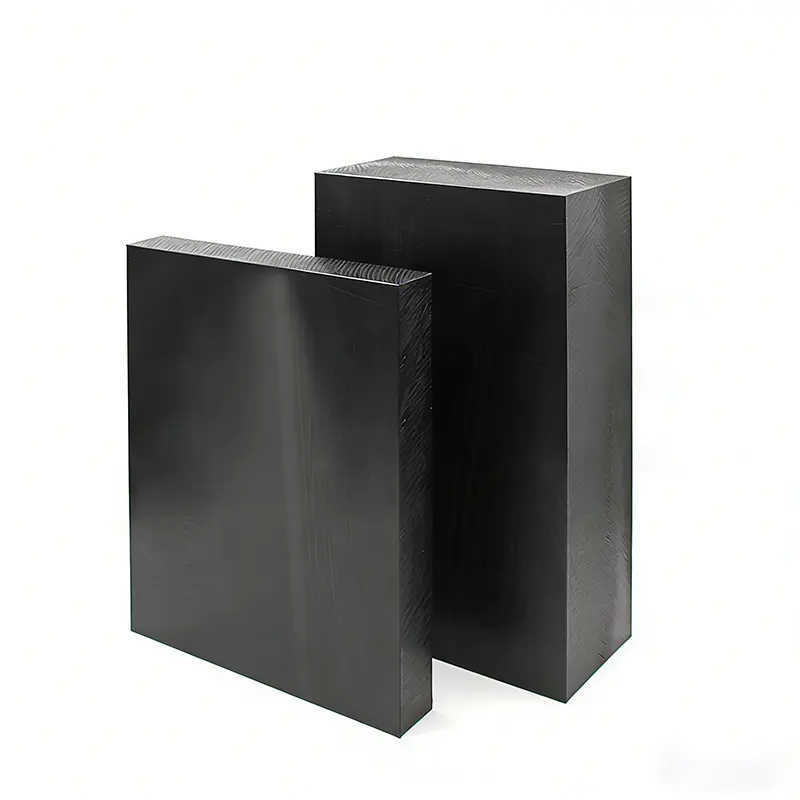

High-Strength CFR-PEEK Composite Sheets
Ultra-high-strength Continuous Carbon Fiber PEEK Composite Plates (CCF/PEEK laminates) engineered for aerospace, medical implants, and heavy industrial metal replacement. Featuring 60% continuous carbon fiber reinforcement, fracture toughness 20x higher than epoxy resin (2.0 kJ/m²)), FAR 25.853 FST compliance, and 100% X-ray radiolucency. Contact us for custom thickness composite sheets, technical datasheets, and fast RFQs.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Continuous Carbon Fiber PEEK Composite Plate (CCF/PEEK Stock)
Continuous Carbon Fiber PEEK Composite Plates (also designated as CCF PEEK consolidated laminates, high strength CFR-PEEK sheet, or thermoplastic carbon fiber composite board) represent the ultimate structural metal replacement for extreme aerospace, medical, and industrial engineering applications. Manufactured by fully consolidating high-modulus continuous carbon fiber prepreg tapes (55-60% fiber volume fraction) with high-purity PEEK resin, this consolidated composite plate delivers mechanical properties and fatigue limits far surpassing traditional thermoset carbon-epoxy laminates and chopped fiber plastics.
Advanced Engineering Capabilities & Performance Standards:
• Extreme Fracture Toughness (20x Higher Than Epoxy):
Featuring a critical fracture toughness up to 2.0 kJ/m², this high strength CFR-PEEK sheet eliminates catastrophic delamination. Its exceptional interlaminar shear strength (ILSS) provides superior damage tolerance under heavy cyclic loading, high impact, and structural vibration.
• Aerospace FST Compliance & SKYDROL Chemical Immunity:
Fully compliant with FAR 25.853 flame, smoke, and toxicity (FST) standards. These flame retardant PEEK composite sheets resist aggressive aviation hydraulic fluids (Skydrol), jet fuels, de-icing agents, and harsh industrial solvents without matrix swelling or degradation.
• 100% X-Ray Radiolucency for Orthopedic Implants:
As a certified radiolucent medical PEEK composite plate, it produces zero artifacts under CT scans and X-ray imaging. Biocompatible with low cytotoxicity and blood/tissue compatibility, making it ideal for orthopedic bone plates, spinal fixation cages, and surgical targeting frames.
• Low Friction & Hydrothermal Wear Resistance up to 250°C:
With near-zero moisture absorption, this wear resistant PEEK sheet maintains full structural integrity in hot steam, seawater, and chemical CIP washdowns while delivering an ultra-low Coefficient of Friction (CoF) at temperatures up to 250°C.
Form Factors & Cross-Industry Applications:
Consolidated continuous CF PEEK prepreg laminates are purpose-built for precision CNC machining, waterjet cutting, and thermoforming of:
• Aerospace & Defense: Fighter jet skins, aircraft window frames, wing leading edges, door structures, missile casings, and rocket support brackets replacing titanium and aluminum.
• Medical & Surgical Instruments: Radiolucent bone plates, fracture fixation nails, surgical targeting guides, and sterilizable medical tool handles.
• Energy, Marine & High-Speed Machinery: High-speed permanent magnet motor sleeves, subsea umbilical oil pipe clamps, vacuum pump vanes, hydrogen storage tanks, and high-pressure compressor rotors.
Specifications & Technical Sourcing:
• Plate Thicknesses: Consolidated composite sheets available from 1.5mm to 50mm+.
• Matrix Consolidation: Low void content (< 0.5%) with 55-60% continuous carbon fiber volume fraction (Vf).
• Quality Certification: Shipped with complete Material Test Reports (MTR) detailing fiber volume, resin content, and mechanical test data.
Upgrading from thermoset epoxy laminates or searching for an aerospace-grade continuous carbon fiber PEEK composite plate supplier? Send us your STEP/DWG drawings or load specifications for an immediate technical evaluation and quotation.
Material overview
Understanding PEEK (Polyether Ether Ketone)
Why engineers use it
- Strong balance of heat, chemical and mechanical performance.
- Can be molded, extruded, machined or printed in suitable grades and equipment.
- Good fatigue and wear potential for demanding moving or loaded parts.
- Available in unfilled, glass-fiber, carbon-fiber and wear-modified grades.
- Suitable for precision components where long-term reliability justifies a specialty polymer.
Limits to consider
- High processing temperature requires capable equipment and controlled drying.
- Crystallinity, cooling and annealing can affect dimensions and performance.
- Reinforcement improves some properties but may reduce ductility or change machining behavior.
- Not every chemical, wear or medical application is covered by a standard industrial grade.
- PEEK can be unnecessary over-specification where PPS, PEI or another polymer meets the duty.
Grades and product forms
Unfilled PEEK provides the broad base-property balance. Glass-fiber grades generally target stiffness and dimensional control; carbon-fiber grades may add stiffness, strength and conductivity; bearing grades use fillers such as carbon, graphite or PTFE to tune friction and wear. Film, filament, powder, pellets and stock shapes each require different processing and purchasing information.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PPS, PEI, PSU/PPSU or a conventional engineering plastic may be more economical when temperature, chemical and mechanical requirements are moderate. PEEK is justified when several demanding requirements occur together or when service life and reliability outweigh raw-material cost.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
