PI (polyimide) materials are engineered for applications requiring outstanding heat resistance, electrical insulation and long-term dimensional stability. VantPoly supplies polyimide sheets, rods, film, molded parts and precision-machined components for semiconductor processing, aerospace, analytical instruments and high-temperature industrial assemblies. Material selection can be matched to operating temperature, friction, chemical exposure, tolerance and volume requirements.
Request a Material Recommendation
Showing all 7 results
Extreme Environment Reliability: -269°C to +300°C.
We are a specialized manufacturer of high-purity Black Polyimide, offering Sheets, Rods, Tubes, Powder, and Pellets. Whether you require raw machining stock or complex CNC-finished components, we provide technical consulting, competitive lead times, and strict Non-Disclosure Agreement (NDA) protection for your proprietary engineering.

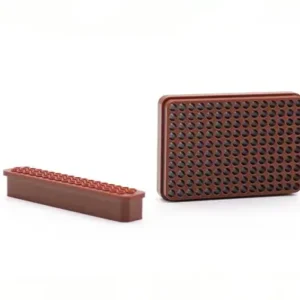

Burr-Free Micro-Drilling for High-Density Pogo Pin Sockets.
Zero-Burr Micro-Holes: Micro-drilled down to 0.2 mm pitch; zero pin-jamming risk.
±0.01 mm Hole Accuracy: Tight true-position tolerance ensures perfect pin alignment.
Up to 260°C Stability: Resists thermal warpage during Burn-in IC testing.
Fast Custom Machining: Built directly to your CAD drawings; low MOQ for prototypes.
We provide premium PI in Sheets, Rods, Tubes, Granules, and Powder. From high-performance raw materials to precision CNC-finished components, we offer a one-stop shop for your most demanding projects.
Performance: 300°C+ thermal stability, ultra-low outgassing, and superior wear resistance.
Customization: Tailored grades and dimensions to meet specific industrial specs.
Trust: Professional technical consulting and Non-Disclosure Agreements (NDA) supported to protect your IP.
Any inquiries? Contact us now for a technical review.

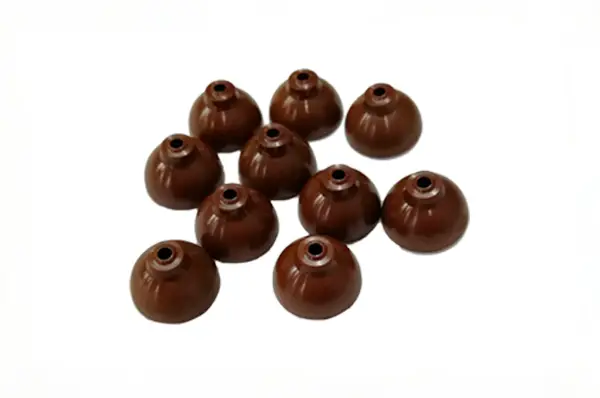

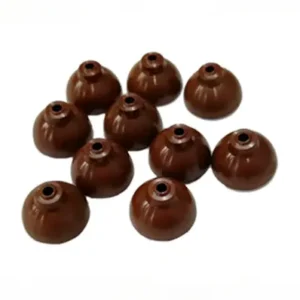

Stop thermal failures where PEEK and PTFE melt or creep.
Engineered from pure Polyimide (PI), this insulation cap acts as an ultra-high temperature thermal choke and electrical barrier for extreme semiconductor, vacuum, and sensor environments.
• No Thermal Creep up to 300°C (400°C+ peak): Holds mechanical clamping force under continuous baking without softening or loosening fasteners.
• Zero Chamber Contamination: NASA-grade low outgassing and non-shedding—safe for plasma etching, CVD, and UHV systems.
• Precision Electrical Isolation: Dielectric barrier with ±0.01 mm tolerance for micro-fasteners and probes, 100% burr-free.
Direct CNC Manufacturer • Rapid Prototyping in 3–5 Days • Custom to Your STEP/CAD Drawings
Ultra-pure polyimide (PI) plate stock engineered to replace PEEK and quartz in fluorine/oxygen plasma etching and high-vacuum CVD chambers. Offers 300°C+ continuous thermal stability (480°C peak), zero plasma erosion particle shed, sub-ppm trace metal purity, and ASTM E595 low outgassing. Thermal-compression sintered for fly-milling 300mm wafer clamp rings without bowing. Send your part drawings or dimensions for a 12-24h technical quotation.
High-purity, non-melting machining stock for extreme environments. Vespel® & Meldin® equivalent grades available for semiconductor, aerospace, and UHV applications.
Ultra-high-purity Semiconductor Grade Polyimide (PI) sheets and rods engineered for extreme vacuum, plasma, and high-temperature wafer processing. Features 300°C+ continuous thermal stability (480°C short-term peak), ASTM E595 vacuum outgassing compliance, sub-ppm trace metal purity, and superior fluorine/oxygen plasma etch resistance. 100% void-free for precision CNC turning and milling. Request a quote for custom PI profile sizes and datasheets.
Use this information to match product form and operating conditions before requesting a quotation.
Where PI is commonly considered
PI is often evaluated for high-temperature insulation, vacuum-related parts, semiconductor processing equipment, aerospace components, wear parts and precision assemblies where thermal stability is important. The application should be assessed for temperature profile, sliding contact, media exposure, electrical requirements and dimensional tolerance.
Available PI product forms
PI sheets, plates and rods
For machined insulation parts, fixtures, guides, bearings and structural components.
PI film and molded components
For electrical insulation, flexible components and application-specific production programs.
Custom-machined PI components
For drawings, samples and assemblies with agreed tolerances, geometry and documentation needs.
What to include with a PI inquiry
Share the preferred form, dimensions or drawing, quantity, application, operating temperature, contact media, load and tolerance requirements. For a replacement part, the failure mode and current material are particularly useful.
PI material selection notes
PI is intended for demanding applications, but PBI, PEEK, PEI or PPS may be more practical when the complete operating conditions, processing route and cost target are considered. Selecting by material name alone can lead to unnecessary sampling and redesign.
