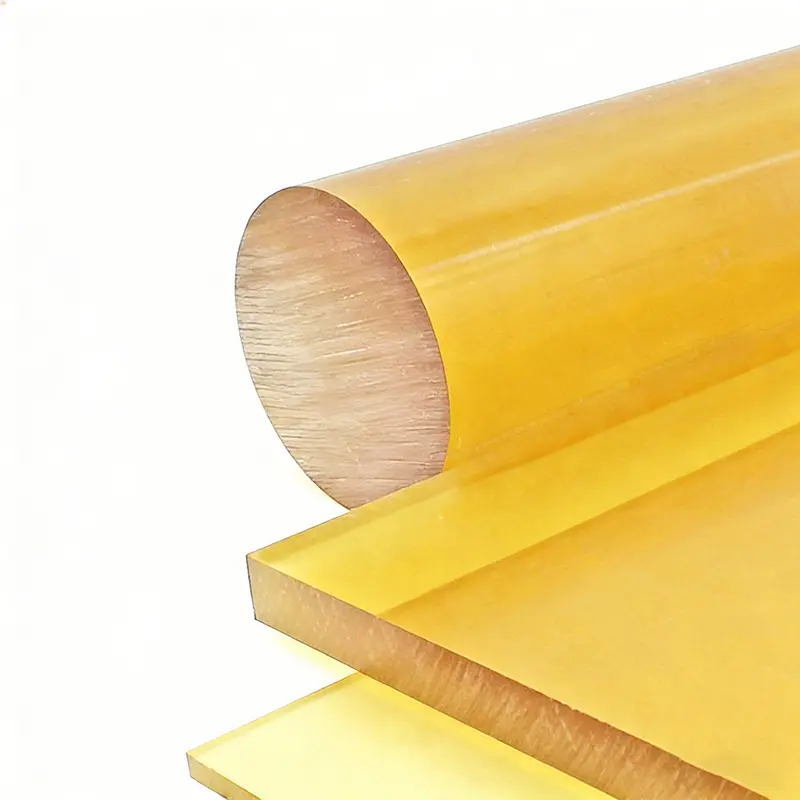

High-Performance PPSU & PSU Rods & Sheets
1000+ Autoclave Cycles (PPSU) | Optical Clarity (PSU) | Full Customization Available
We supply high-performance Sulfone Polymer Rods & Sheets, featuring both High-Impact PPSU (Polyphenylsulfone) and Amber Transparent PSU (Polysulfone). Whether you need PPSU for 1000+ steam autoclave cycles and hydrogen seals, or PSU for amber fluidic sight glasses, our stock shapes comply with FDA food contact and ISO 10993 standards.
We offer full customization on custom colors (Royal Blue, Black, Natural), glass-filled formulations, and cut-to-size dimensions. Share your required specs or drawing below for a fast quote.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Engineering Decision Matrix: PPSU vs. PSU
| Technical Metric | PPSU Stock Shapes (Polyphenylsulfone) | PSU Stock Shapes (Polysulfone) |
| Impact Strength | Extreme / Virtually Shatterproof | High Rigidity / Standard Impact |
| Steam Sterilization | 1,000+ Autoclave Cycles (134°C) | ~ 100 Autoclave Cycles |
| Optical Transparency | Amber Translucent / Opaque / Custom Colors | Amber Glass Transparent (Clear) |
| Continuous Temp Limit | 180 °C (Short-term 220°C) | 160 °C (Short-term 180°C) |
| Primary Focus | Medical Instruments, Hydrogen Seals, Baby Bottles | Chemical Sight Glasses, Lab Fluidics, Food Valves |
| Material Cost | Premium Sulfone Grade | Cost-Effective Sulfone Grade |
Full Customization Capabilities (Tailored to Your Project)
We manufacture custom sulfone stock shapes tailored to your exact application parameters:
-
Custom Color Matching: Available in Natural Amber, Solid Black, Custom Extruded Royal Blue (for medical/piping color coding), and specific Pantone/RAL color codes with high batch consistency.
-
Custom Formulations: Unfilled pure resins (P200/P300/P500 viscosity equivalents), Glass-Fiber Reinforced (GF20%, GF30%), and toughened modified formulations.
-
Custom Dimensions & Machining Stock: Non-standard rod diameters (10mm to 200mm+), extra-thick plates (5mm to 100mm+), precision centerless ground rods (h9/h8 tolerance), and cut-to-size pieces.
Material Profiles & Typical Applications
1. PPSU (High-Impact & Autoclave Grade)
Delivers near-unbreakable impact toughness and resistance to 1,000+ steam sterilization cycles without micro-cracking or property degradation.
-
Applications: Reusable surgical trial handles, dental instrument trays, hydrogen fuel cell bipolar plates, high-pressure hydrogen storage lining seals, and FDA baby-bottle fluidics.
2. PSU (Amber Optical Clarity Grade)
Combines amber glass transparency with high heat deflection temperature (HDT ~174°C) and resistance to mineral acids and salt solutions.
-
Applications: Chemical laboratory sight glasses, fluidic manifolds, water treatment membrane headers, and dialysis filter housings.
Engineering Limitations & Boundaries (Sulfone Family)
-
⚠️ Polar Organic Solvent Restriction: Amorphous sulfone polymers (PPSU & PSU) are inherently sensitive to polar organic solvents such as Ketones (Acetone, MEK), Esters, and Aromatic Hydrocarbons, which cause Environmental Stress Cracking (ESC). (Select crystalline PPS or PEEK for ketone/ester exposure).
-
⚠️ Thermal Upper Ceiling: Suitable for continuous operating temperatures up to 180°C (PPSU) and 160°C (PSU). For continuous service temperatures above 200°C under heavy mechanical loads, upgrade to PEEK.
Quote Parameters & Ordering Checklist
Please specify:
-
Material Selected: PPSU Grade or PSU Grade.
-
Form & Size: Rod Diameter or Sheet Thickness × W × L (or Cut-to-Size drawing).
-
Color Option: Natural Amber, Custom Royal Blue, Solid Black, or Custom Pantone.
-
Custom Modification (Optional): Unfilled, Glass-Filled (GF20%/GF30%), or specific resin viscosity.
-
Compliance Needs: FDA Food Contact / ISO 10993 Biocompatibility / Autoclave Grade.
-
Quantity: Number of rods, sheets, or cut pieces.
Material overview
Understanding PPS (Polyphenylene Sulfide)
Why engineers use it
- Broad chemical resistance for many industrial fluids and process environments.
- Low moisture uptake and good dimensional stability.
- Useful electrical insulation and inherent flame-resistance characteristics.
- Reinforced grades can provide high stiffness and repeatable molded dimensions.
- Often offers a practical cost/performance position below PEEK.
Limits to consider
- Unfilled PPS can be relatively brittle and design details strongly affect impact performance.
- Glass or mineral reinforcement changes shrinkage, anisotropy and machining behavior.
- Oxidizing media and actual high-temperature chemicals still require compatibility review.
- Weld lines, sharp corners and molding orientation can become structural weak points.
- It should not be selected from chemical-resistance charts alone.
Grades and product forms
PPS is commonly supplied unfilled or reinforced with glass fiber, mineral filler, carbon fiber or combined systems. The filler package changes stiffness, movement, surface finish, conductivity and wear. Pellets suit volume molding, while sheet, rod or finished parts may be preferable for prototypes and lower-volume production.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PEEK may be preferred when toughness or a broader high-temperature performance margin is required. PPS can be the more practical solution when chemical resistance, stiffness, repeatable molding and cost control are the central requirements.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
