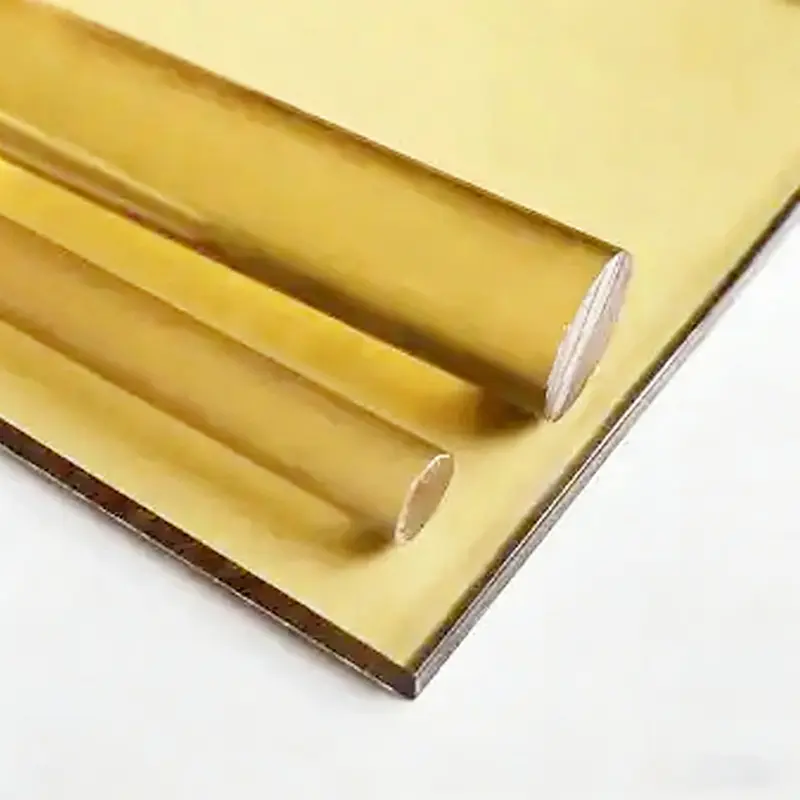

Food Grade PPSU/PSU Rod & Sheet
FDA 21 CFR & EU 10/2011 Compliant | BPA-Free | Hot Food & Beverage Stock
Supplied as certified, high-purity machining stock, our Food-Grade PPSU/PSU Rods & Sheets comply with FDA 21 CFR and EU 10/2011 food contact regulations. Engineered for commercial food processing equipment, coffee brewing manifolds, and dairy valves, our amber stock shapes offer 100% BPA-free purity, hot water/steam CIP (Clean-In-Place) resistance up to 180°C, and zero odor or taste migration.
Send your target rod diameter, sheet thickness, or drawing below for an immediate factory quote.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Engineering Brief: Food Safety, Compliance & CIP Cleanability
In commercial food machinery, beverage dispensing systems, and dairy processing equipment, plastic components face continuous contact with hot fats, acidic citrus, boiling liquids, and aggressive alkaline CIP (Clean-In-Place) detergents. Standard plastics like Nylon or POM hydrolyze or leach plasticizers into food products.
Our Natural Amber Food-Grade PPSU and PSU stock shapes are certified FDA 21 CFR compliant and 100% BPA-free. They withstand continuous exposure to hot oils, steam washdowns, and acidic cleaning chemicals up to 180°C without hydrolyzing, crazing, or altering the natural taste, odor, or color of food products.
PSU vs. PPSU Selection for Food Machinery
-
Specify Food-Grade PSU (Polysulfone): Ideal for transparent commercial coffee machine manifolds, sight ports, dairy line valves, and beverage dispenser housings requiring amber clarity up to 160°C (HDT 174°C) at optimal material cost.
-
Specify Food-Grade PPSU (Polyphenylsulfone): Ideal for heavy-duty food processing trays, commercial baking equipment components, or parts requiring high shatterproof impact strength and 180°C continuous operating heat.
Machinability & Hygienic Surface Finish
All food-grade rods and thick plates undergo a 72-hour thermal stress-relief process. Machinists can turn valve plugs and mill food handling trays with smooth Ra 0.4μm surface finishes, eliminating micro-crevices where bacteria, food particles, or cleaning residues could accumulate.
Material Boundaries (When NOT to Specify – Drawbacks)
-
⚠️ Polar Organic Solvent Restriction: Amorphous Food-Grade PSU and PPSU will experience Environmental Stress Cracking (ESC) when exposed to polar organic solvents such as Acetone, MEK, or Ethyl Acetate during equipment maintenance. (Use FDA-compliant PPS or PEEK for ketone/ester exposure).
-
⚠️ Direct Outdoor UV Exposure: Unprotected amber transparent sulfone shapes will darken under direct outdoor UV radiation over time; specify opaque black for outdoor food processing equipment.
Stock Parameters & Quote Checklist
-
Material Grade: Food-Grade PSU (Polysulfone) or Food-Grade PPSU (Polyphenylsulfone).
-
Stock Form & Size: Sheet Thickness (5mm to 100mm+) × W × L (mm) or Rod Diameter (10mm to 150mm+).
-
Regulatory Compliance: FDA 21 CFR / EU 10/2011 Food Contact.
-
Quantity: Number of sheets, rods, or cut-to-size pieces.
Material overview
Understanding PPS (Polyphenylene Sulfide)
Why engineers use it
- Broad chemical resistance for many industrial fluids and process environments.
- Low moisture uptake and good dimensional stability.
- Useful electrical insulation and inherent flame-resistance characteristics.
- Reinforced grades can provide high stiffness and repeatable molded dimensions.
- Often offers a practical cost/performance position below PEEK.
Limits to consider
- Unfilled PPS can be relatively brittle and design details strongly affect impact performance.
- Glass or mineral reinforcement changes shrinkage, anisotropy and machining behavior.
- Oxidizing media and actual high-temperature chemicals still require compatibility review.
- Weld lines, sharp corners and molding orientation can become structural weak points.
- It should not be selected from chemical-resistance charts alone.
Grades and product forms
PPS is commonly supplied unfilled or reinforced with glass fiber, mineral filler, carbon fiber or combined systems. The filler package changes stiffness, movement, surface finish, conductivity and wear. Pellets suit volume molding, while sheet, rod or finished parts may be preferable for prototypes and lower-volume production.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PEEK may be preferred when toughness or a broader high-temperature performance margin is required. PPS can be the more practical solution when chemical resistance, stiffness, repeatable molding and cost control are the central requirements.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
