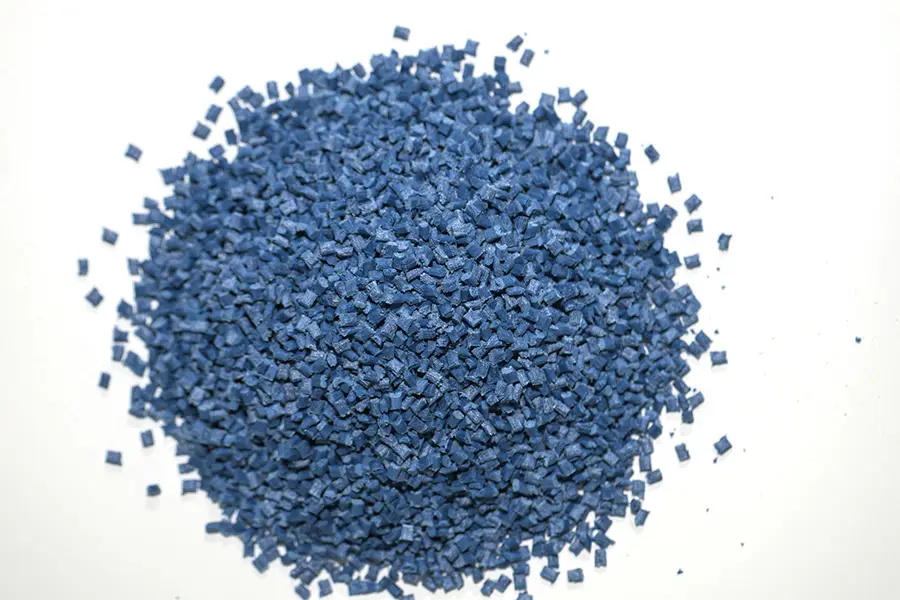

PPS for EV Thermal Management Systems
We supply high-performance Modified PPS (Polyphenylene Sulfide) Pellets benchmarking Toray TORELINA® standards. Our comprehensive series includes Glass Fiber (GF30–40%), Glass/Mineral (GF/MD 50–70%), Carbon Fiber (CF10–35%), Wear-Resistant (CF/PTFE), Thermal Conductive, High CTI, and 5G Low Dielectric grades. All specifications, filler ratios, and properties can be fully customized upon request. Share your required specs for a fast quote.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Modified PPS Pellets & Compounds offer a complete portfolio of high-temperature engineering plastics engineered to replace metals and outperform standard thermoplastics under extreme heat, chemical, and electrical stress. Manufactured to benchmark Toray TORELINA® grades, our compounds deliver UL RTI ratings of 200–240°C, inherent UL94 V-0 flame safety, and zero corrosion in aggressive chemical environments.
Whether you require low-warpage glass/mineral fills for bobbins and rectifiers, ultra-wear CF/PTFE grades for electronic water pumps, high CTI grades for EV connectors, or 5G low dielectric (𝐷ₖ) formulations for base station antennas, our lineup meets exact automotive, electronic, and industrial specs. Custom specifications, unique filler blends, and color matching can be discussed and tailored in detail to meet your exact project requirements.
💡 Customization Service Notice: In addition to our standard Toray-equivalent grades listed above, customized specifications (filler content, melt flow rate, impact modifiers, and color matching) can be fully tailored and discussed in detail based on your OEM project requirements.
How this product is normally specified
This product is supplied as compound pellets for injection moulding or profile extrusion:
-
Base Grade & Reinforcement: GF, GF/MD, CF, PTFE, or custom blend percentage
-
Special Performance Needs: High CTI (＞600V), 5G Low 𝐷ₖ, thermal conductivity, or ESD anti-static
-
Processing Route: High-flow injection moulding or extruded sheet/rod processing
-
Customization Requirements: Specific color matching, custom flow rate, or tailored mechanical targets
Where this material can fit
Typical applications for modified PPS compounds include:
-
Automotive & EV Systems: Water pump housings, electronic impellers, EV battery covers, connectors, and IGBT shells
-
Electronics & 5G Telecom: Transformer bobbins, rectifiers, Lidar brackets, 5G antenna vibrators, and laptop housings
-
Semiconductor & Cleanroom: ESD anti-static fixtures, semiconductor assembly jigs, and chemical fluid pumps
-
Home Appliances & Industrial: Kitchen appliance components, air fryers, industrial gears, and mechanical brackets
What to confirm before ordering
To recommend or customize the right PPS grade, please confirm:
-
Required compound category or target Toray grade (e.g., A504X90, A310M, A630T30V equivalent)
-
Key performance drivers (strength, low warpage, wear resistance, CTI rating, or low 𝐷ₖ)
-
Processing method (injection moulding or extrusion)
-
Required trial quantity and estimated annual commercial demand
Send us the information you have. We will review technical details before confirming the quotation.
Material overview
Understanding PPS (Polyphenylene Sulfide)
Why engineers use it
- Broad chemical resistance for many industrial fluids and process environments.
- Low moisture uptake and good dimensional stability.
- Useful electrical insulation and inherent flame-resistance characteristics.
- Reinforced grades can provide high stiffness and repeatable molded dimensions.
- Often offers a practical cost/performance position below PEEK.
Limits to consider
- Unfilled PPS can be relatively brittle and design details strongly affect impact performance.
- Glass or mineral reinforcement changes shrinkage, anisotropy and machining behavior.
- Oxidizing media and actual high-temperature chemicals still require compatibility review.
- Weld lines, sharp corners and molding orientation can become structural weak points.
- It should not be selected from chemical-resistance charts alone.
Grades and product forms
PPS is commonly supplied unfilled or reinforced with glass fiber, mineral filler, carbon fiber or combined systems. The filler package changes stiffness, movement, surface finish, conductivity and wear. Pellets suit volume molding, while sheet, rod or finished parts may be preferable for prototypes and lower-volume production.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Preparing a pellet or granule project
State whether the resin will be injection molded, compression molded, extruded, compounded or used in process development. Include machine capability, part thickness, mold concept, drying and handling plan, color, filler or additive needs, and the property the finished part must retain. For an unfamiliar resin, a controlled trial lot is more useful than moving directly to production volume.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PEEK may be preferred when toughness or a broader high-temperature performance margin is required. PPS can be the more practical solution when chemical resistance, stiffness, repeatable molding and cost control are the central requirements.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Pellets or granules; natural, black or another required color |
|---|---|
| Grade direction | Unfilled, reinforced, modified or application-specific requirement |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
| Conversion process | Molding, extrusion, compounding, sintering or development work |
| Packaging | Trial pack, production packaging and moisture-control expectations |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
