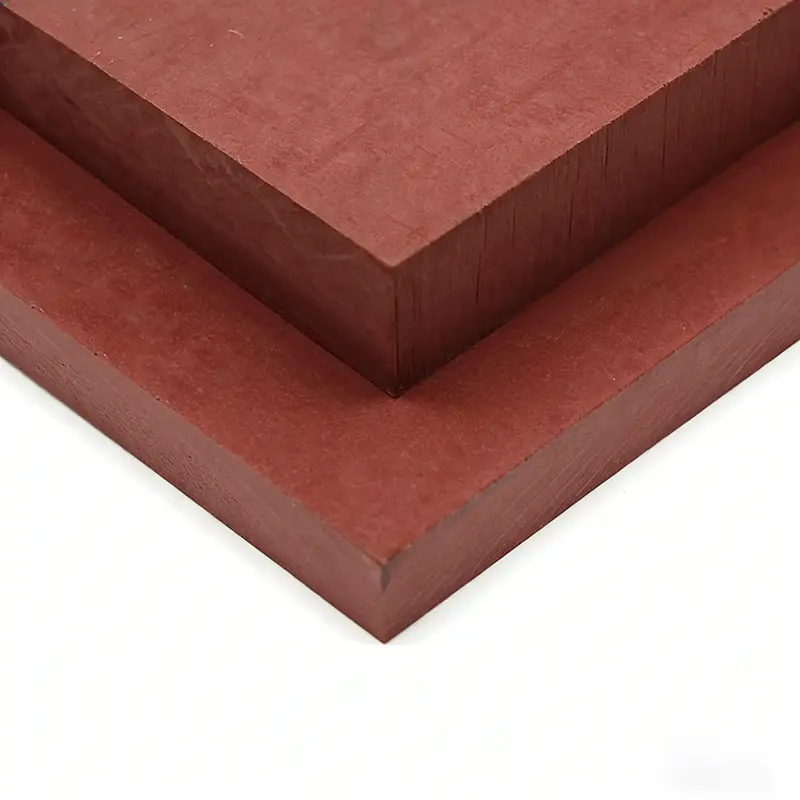

Red & Custom Colored PPS Sheets
We supply continuously extruded Red and Custom Colored PPS Sheets and Plates engineered for high-temperature electrical insulation and visual phase/safety identification. Formulated with heat-stable pigments that resist thermal degradation up to 220°C, this flame-retardant stock shape (UL94 V-0 / 5V) delivers complete chemical insolubility in all solvents below 200°C. Ideal for high-voltage phase barriers, safety-identified industrial wear plates, and custom-branded OEM parts. Custom sheet thicknesses, RAL/Pantone colors, and pre-cut CNC blanks are fully available upon request. Share your specs for a fast quote.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
Red & Custom Colored PPS Sheets & Plates represent the premium standard in color-coded stock shapes for precision CNC machining. While standard PPS is natural brown or black, our color-pigmented PPS plates utilize specialized thermal-stabilized pigments that do not bleed, fade, or degrade under continuous operating temperatures of 220°C.
Engineered for critical high-voltage and chemical environments, these colored plates allow immediate visual identification of high-voltage phase barriers, dangerous fluid lines, or custom OEM brand components. Multi-stage annealed to eliminate internal extrusion stress, they guarantee zero warpage and zero stress-cracking during deep CNC milling and drilling.
Property Datasheet Summary (Colored PPS Series)
| Property / Parameter | Technical Value / Standard | Engineering Advantage |
| Color & Appearance | Brick Red / Custom RAL & Pantone Colors | Visual Phase & Safety Identification |
| Thickness & Width | 5 mm to 100 mm Thickness / Width up to 1250 mm | Multi-Stage Annealed / Warpage-Free CNC |
| Continuous Operating Temp | 220°C (Short-term peak: 260°C) | Pigment Thermal Stability (No Bleeding) |
| Chemical Resistance | Insoluble in all organic solvents below 200°C | 100% Resistant to Acids, Alkalis, Salts |
| Flammability Rating | UL94 V-0 / 5V (Inherent Flame Retardant) | Passes UL Fire & Low Smoke Standards |
| Water Absorption | < 0.05 % (Zero Moisture Swell) | Tight Tolerance CNC Precision |
How this product is normally specified
This product is supplied as extruded colored PPS boards and pre-cut plates for CNC milling:
-
Dimensions: Thickness (5–100 mm), sheet size (610×1220 mm), or cut CNC blanks
-
Color Specification: Standard Brick Red or custom RAL/Pantone color matching
-
Stress Relief: Multi-stage annealed to eliminate stress warpage during CNC milling
-
Customization: Custom colors, non-standard thicknesses, or pre-cut blanks upon request
Where this material can fit
Typical applications for red and custom colored PPS sheets include:
-
High-Voltage Power Systems: Color-coded phase insulation barriers, busbar isolators, and terminal blocks
-
Chemical & Hazard Equipment: Safety-identified chemical fluid manifolds, acid-resistant valve plates, and pump guards
-
Automotive & EVs: High-voltage battery pack insulation, sensor covers, and color-coded fluid lines
-
Custom OEM Machinery: Brand-matched structural covers, high-temp wear plates, and industrial guides
What to confirm before ordering
To recommend the right colored PPS sheet specification, please confirm:
-
Target thickness (mm), width/length, and required piece quantity
-
Color shade requirement (standard Red or custom RAL/Pantone code)
-
CNC machining operations (confirming deep milling or heavy stock removal)
-
Required trial quantity and estimated annual commercial demand
Send us the information you have. We will review technical details before confirming the quotation.
Material overview
Understanding PPS (Polyphenylene Sulfide)
Why engineers use it
- Broad chemical resistance for many industrial fluids and process environments.
- Low moisture uptake and good dimensional stability.
- Useful electrical insulation and inherent flame-resistance characteristics.
- Reinforced grades can provide high stiffness and repeatable molded dimensions.
- Often offers a practical cost/performance position below PEEK.
Limits to consider
- Unfilled PPS can be relatively brittle and design details strongly affect impact performance.
- Glass or mineral reinforcement changes shrinkage, anisotropy and machining behavior.
- Oxidizing media and actual high-temperature chemicals still require compatibility review.
- Weld lines, sharp corners and molding orientation can become structural weak points.
- It should not be selected from chemical-resistance charts alone.
Grades and product forms
PPS is commonly supplied unfilled or reinforced with glass fiber, mineral filler, carbon fiber or combined systems. The filler package changes stiffness, movement, surface finish, conductivity and wear. Pellets suit volume molding, while sheet, rod or finished parts may be preferable for prototypes and lower-volume production.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PEEK may be preferred when toughness or a broader high-temperature performance margin is required. PPS can be the more practical solution when chemical resistance, stiffness, repeatable molding and cost control are the central requirements.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
