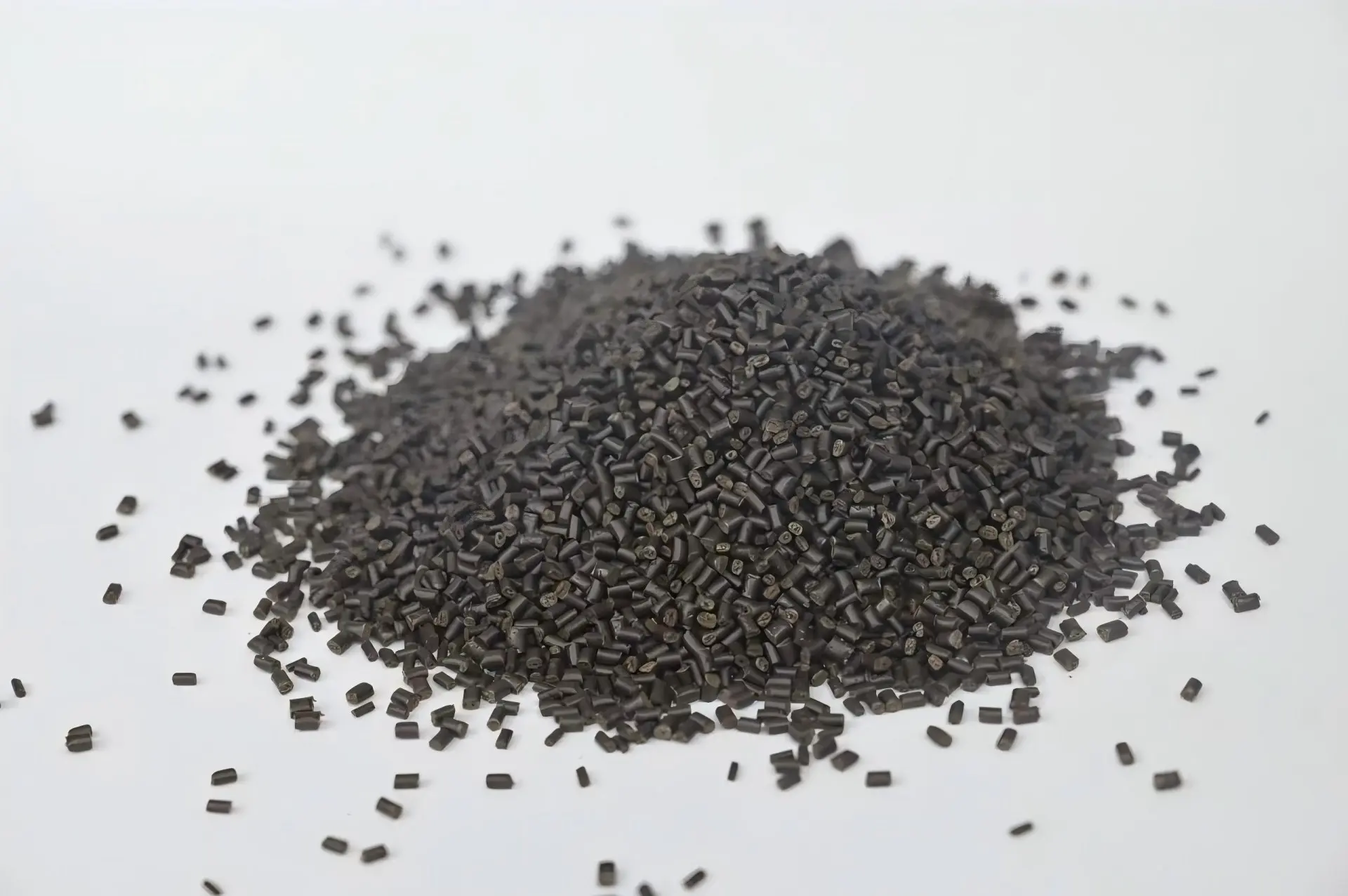

PBI (Polybenzimidazole) Resin Pellets
We supply Melt-Processable PBI/PEEK Pellets (Tg 310°C). Delivering over 70% of pure PBI’s performance at significantly lower cost, this grade is injection-mouldable for high-load bearings, oil-free bushings, compressor vanes, and gears.
Product information
Published information supports preliminary product selection. Confirm the exact grade, dimensions, tolerances, documentation and application suitability with the quotation for your order.
Description
PBI Modified Resin is an advanced engineering polymer developed by combining PBI (Polybenzimidazole) with PEEK or PEKK resin through specialized compounding technology.
This material delivers a balanced combination of thermal stability, mechanical strength, wear resistance, and processing performance, providing a cost-effective alternative between pure PBI and conventional high-performance polymers.
Compared with pure PBI, PBI modified resin offers improved melt processing capability while maintaining excellent performance in high-temperature and wear-critical applications.
How this product is normally specified
PBI modified resin is selected based on application requirements and processing conditions.
Key factors include:
- PBI/PEEK or PBI/PEKK modification grade
- Processing method and equipment requirements
- Required temperature, wear, and mechanical performance
- Component design and operating environment
Where this material can fit
PBI modified resin (PBI/PEEK blend) is engineered for high-load dynamic components requiring a balance of extreme heat resistance, superior wear resistance, low creep, and melt-processability.
Typical applications include:
-
High-Load Dynamic Bearings & Bushings: Oil-free bushings, thrust washers, and sleeve bearings operating under continuous heavy loads and dry sliding conditions
-
Compressors & Industrial Pumps: High-durability compressor vanes, rotary blades, wear rings, floating seals, and valve plates
-
Precision Power Transmission: High-load precision gears, timing wheels, and complex-shaped mechanical drive components
-
Extreme Automotive & Aerospace Systems: Under-hood dynamic wear parts, high-temperature valve guides, and actuator bushings
Final suitability depends on part geometry, sliding velocity, continuous operating temperature, and complete service environment. Where an existing pure PEEK or sintered pure PBI grade is being replaced for cost optimization or performance enhancement, send its data sheet so the comparison is based on the same requirements.
What to confirm before ordering
To recommend the right PBI modified resin, please provide:
- Application and component requirements
- Processing method
- Required performance targets
- Trial or production quantity
We can provide material recommendations, technical support, and quotation based on your requirements.
Material overview
Understanding PBI (Polybenzimidazole)
Why engineers use it
- Exceptional thermal capability for specialized continuous or cyclic high-temperature service.
- Inherent flame resistance without relying solely on added flame-retardant packages.
- Good compressive behavior and dimensional control for hot fixtures, insulators and precision parts.
- Useful wear and friction behavior in selected high-temperature moving components.
- Electrical insulation potential for parts exposed to heat and demanding process conditions.
Limits to consider
- PBI is a premium specialty polymer and is rarely justified for ordinary temperature service.
- Processing is demanding; resin handling, conversion equipment and process control must be considered before ordering pellets.
- Moisture and environmental conditioning can influence dimensions and properties, so storage and application exposure matter.
- A headline maximum-temperature value should not be used alone; time, load, atmosphere and thermal cycling determine suitability.
- Exact chemical compatibility, compliance and acceptance criteria must be confirmed for the selected grade.
Grades and product forms
PBI may be supplied as resin, powder, pellets, stock shapes, film, fiber or finished parts depending on the project. Unfilled material emphasizes the base polymer’s thermal and insulation behavior; modified or compounded systems may target processing, wear, conductivity or another property. Product form is not interchangeable: pellets are intended for a controlled conversion route, while plate, rod or tube may be more practical for low-volume machined components.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Thermal endurance | The material is evaluated for prolonged exposure where ordinary polymers lose stiffness or dimensional control. | Continuous temperature, short peaks, dwell time, thermal cycling and whether load is present while hot |
| Dimensional stability | Fixtures, insulators and precision parts must remain usable after heating and cooling cycles. | Critical dimensions, allowable movement, assembly clearance and cycle frequency |
| Flame and heat exposure | Inherent resistance to ignition and flame spread can matter in protective, electrical and process applications. | Applicable test method, part thickness, atmosphere and project-specific compliance need |
| Mechanical retention | The design may depend on compressive strength, stiffness or wear behavior at elevated temperature. | Static or dynamic load, contact pressure, speed, mating material and lubrication condition |
| Chemical and atmospheric exposure | High-temperature performance can be affected by process gases, oxidation, moisture or aggressive media. | Chemical or gas identity, concentration, pressure, temperature and duration of exposure |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Preparing a pellet or granule project
State whether the resin will be injection molded, compression molded, extruded, compounded or used in process development. Include machine capability, part thickness, mold concept, drying and handling plan, color, filler or additive needs, and the property the finished part must retain. For an unfamiliar resin, a controlled trial lot is more useful than moving directly to production volume.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PBI is generally not the first choice for a routine plastic component. PEEK, PI, PAI, PPS or another engineering polymer may be more economical when the heat, load and flame requirements are less severe. PBI becomes relevant when the project has a clear performance gap that these alternatives cannot close. The selection should be justified by the actual duty cycle, not by a desire to specify the highest-temperature material available.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Pellets or granules; natural, black or another required color |
|---|---|
| Grade direction | Unfilled, reinforced, modified or application-specific requirement |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
| Conversion process | Molding, extrusion, compounding, sintering or development work |
| Packaging | Trial pack, production packaging and moisture-control expectations |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
