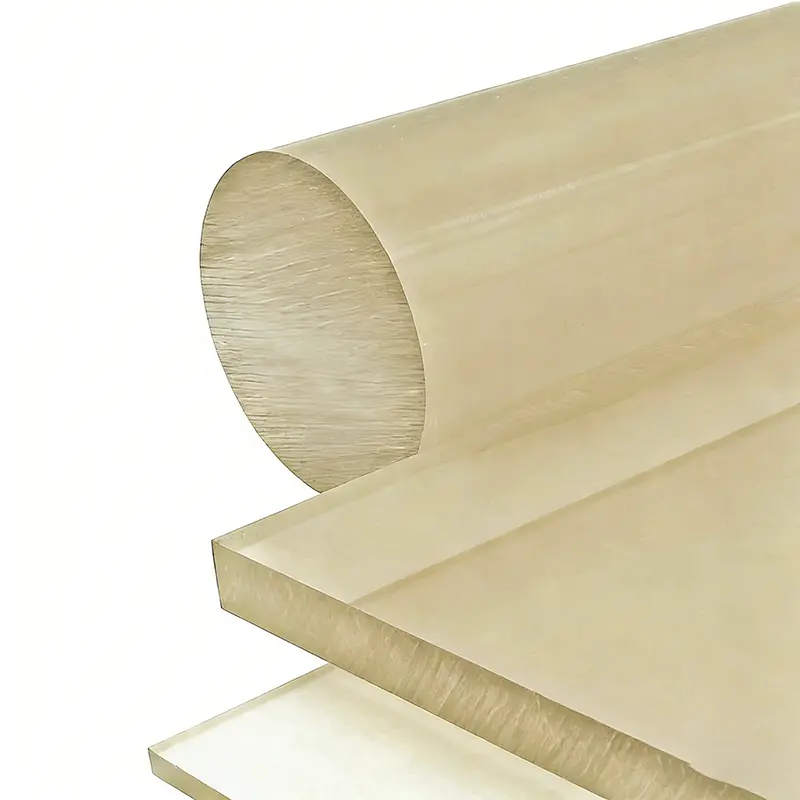

Hydrolysis-Resistant Amber PES Polymer Rods & Sheets
High-performance, hydrolysis-resistant amber PES supplied in pellets, rods, sheets, and custom-machined parts. Share your application details, dimensions, and quantity for an accurate quote.
Description
Amber PES (Polyethersulfone) is an amorphous thermoplastic known for its exceptional hydrolysis resistance, high mechanical strength, and thermal stability up to 180°C. Naturally amber and translucent in appearance, it withstands repeated steam sterilization (150°C–160°C) and hot water exposure without material degradation.
We supply this material in raw resin pellets, stock shapes (rods, sheets, plates), and custom CNC-machined parts for medical, laboratory, fluid handling, and food-contact applications.
Where this material can fit ？
Amber, hydrolysis-resistant PES is specifically engineered for environments exposed to repeated steam sterilization, hot water, acids, and precision fluid handling. Typical applications include:
Medical & Dialysis Equipment: Dialysis control panels, fluid manifolds, surgical tool components, and sterilizable trays.
Laboratory & Filtration: Water filtration membranes, filter housings, sight glasses, and chemical lab apparatus.
Food & Beverage Processing: Food-contact parts, hot liquid valves, and coffee machine components (FDA compliant).
Industrial Fluid Handling: Valve pistons, pump impellers, steam fittings, and flow indicators.
Suitability depends on operating temperature (up to 180°C), pressure, chemical media, and load. Our team can help evaluate your application prior to prototyping or machining.
Available Forms & Supply Discussion
We supply PES in raw resin pellets, stock shapes (rods, sheets, plates), and custom-machined parts or extrusions:
-
Stock Shapes (Rods/Plates/Sheets):Â Please share your required diameter, thickness, length, and machining allowance.
-
Resin Pellets:Â Please specify your intended processing method (injection molding, extrusion, membrane casting) and target properties.
-
Custom Machined Parts:Â Please provide 2D/3D drawings, required tolerances, and order quantity.
Information Needed Before Placing an Order
To provide an accurate quote and recommendation, please confirm the following details:
-
Material Grade:Â Pure PES or reinforced grade (e.g., 30% glass-filled PES GF30).
-
Shape & Dimensions:Â Required product form, finished size, and tolerance range.
-
Operating Conditions:Â Continuous/peak temperature, chemical exposure, and load requirements.
-
Order Details:Â Estimated order quantity, sample needs, and delivery destination.
Please send your part drawings, specifications, or a brief project description. Our technical team will review your request and provide practical material and supply solutions.
[Request a Quote]
Material overview
Understanding PES (Polyethersulfone)
Why engineers use it
- Good heat resistance and dimensional stability.
- Useful hydrolysis and electrical performance.
- Suitable for filtration and fluid-system components in compatible media.
- Available as resin and machinable stock shapes.
- Can provide a practical balance between PSU/PPSU and higher-cost polymers.
Limits to consider
- Actual chemical compatibility must include stress and temperature.
- Processing requires moisture control and high-temperature capability.
- Impact or severe wear may call for another material.
- Color and transparency vary by grade and form.
- Regulated uses require confirmation of documentation.
Grades and product forms
PES resin supports molded or membrane-related processing, while rod, sheet and plate support machined parts. The correct form depends on volume, tolerances, tooling and the required surface or inspection standard.
Performance points to review
| Evaluation area | Why it matters | Information to provide |
|---|---|---|
| Temperature behavior | Useful performance under elevated or changing temperature | Continuous and peak temperature, cycle length and time at load |
| Mechanical response | Strength and stiffness must match the real part geometry | Load direction, stress level, impact and fatigue expectations |
| Environmental resistance | Fluids, cleaning agents and atmosphere can change service life | Chemical name, concentration, temperature and exposure time |
| Dimensional control | Tight-tolerance parts depend on both material and processing | Finished dimensions, tolerances and assembly conditions |
| Electrical or insulation needs | Electrical requirements may influence grade and thickness | Voltage, dielectric, conductivity or insulation target |
These are engineering discussion points, not guaranteed property values. Final acceptance criteria should be agreed for the selected grade, process and order.
Typical application directions
These examples show where the material may be evaluated. They do not replace a suitability review for the finished component.
Fabrication and processing preparation
Share the finished part drawing as well as the requested rod diameter and length. This makes it possible to discuss machining allowance, tolerance, cut length, quantity and whether a closer starting size could reduce waste.
Where the application is critical, define what a successful trial looks like before material is ordered: dimensions after processing, visual condition, mechanical response, assembly fit or another measurable result.
When another material may be better
PPSU may offer a different toughness and sterilization balance, while PEEK may be selected for more severe mechanical or chemical duty. PES is appropriate when its specific thermal and electrical profile matches the component.
We recommend sharing the current material and the reason it is being reconsidered. Cost, processability, supply form and inspection burden belong in the decision alongside technical performance.
Information needed for an accurate quotation
A useful RFQ reduces follow-up questions and helps us distinguish between a material request and a finished-part requirement.
| Product form | Raw material, stock shape, semi-finished blank or completed part |
|---|---|
| Dimensions | Nominal size, finished size and tolerances |
| Quantity | Trial quantity, first order and estimated annual demand |
| Application | Part function and current material, if any |
| Operating temperature | Continuous range, peak temperature and cycle duration |
| Environment | Chemicals, gases, moisture, pressure, vacuum or outdoor exposure |
| Mechanical duty | Load, speed, impact, wear and mating components |
| Documentation | Drawing revision, inspection, traceability or compliance needs |
Frequently asked questions
Can I request a sample or trial quantity?
Trial quantities can be discussed according to product form and availability. Tell us what you need to prove during the trial, the intended process and the expected production quantity if the test succeeds.
Do you provide a data sheet or material documentation?
Available documentation depends on the selected material and supply route. List the documents required by engineering, purchasing or quality when you inquire so they can be checked before quotation.
Can the grade be selected from a product name alone?
No. Similar product names can cover different grades, colors, fillers and processes. Selection should be based on the finished application, environment and required property balance.
Can you supply custom dimensions or finished parts?
Custom sizes, blanks or finished parts can be reviewed where appropriate. A drawing with tolerances, quantity and material requirement is the best basis for quotation.
How should we evaluate an alternative to our current material?
Share the current grade, the part’s service conditions and the reason for changing it. A useful comparison looks at failure mode, processing, life, inspection and total project cost—not only a single property value.
What determines lead time?
Lead time depends on product form, grade, size, quantity, documentation, machining and current availability. Confirm the required delivery date and destination with the RFQ rather than assuming a standard schedule.
Send the drawing, application and quantity. We will use the project details to prepare a practical material and supply discussion.
